产品搜寻
| 勾选 | 型号 | 产品类型 | 显示内容 | 产品图 |
外形尺寸 (mm) |
视域窗口尺寸 (mm) |
显示尺寸 mm/英寸 |
有效尺寸 mm |
视角 | 背光类型或亮度 | 连接方式PIN数 | 接口方式 | 特殊说明 | 工作温度 | 供电电压 | IC芯片型号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

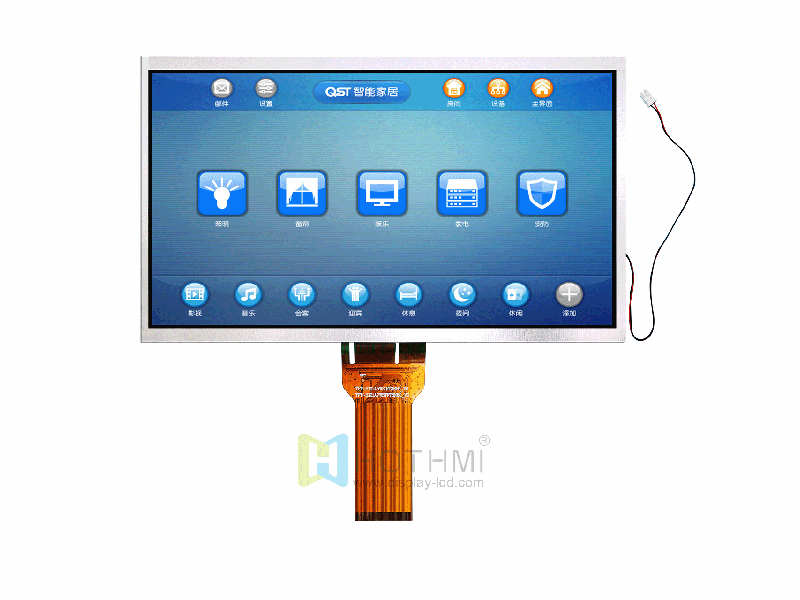

| 10.1寸TFT横屏|1024*600IPS宽视角|LVDS接口|厚度5.0高亮度TFT-H101A2WSIFT7N40 | TFT横屏 | 1024x600 |
|
235.0x143.0x5.0 | 10.1 | 10.1 | 222.72x125.28 | 全视角 | 1000cd/m2 | 40PIN | LVDS | 可配套CTP | -20~70℃ | 3.3V | EK79001+EK73215 | |

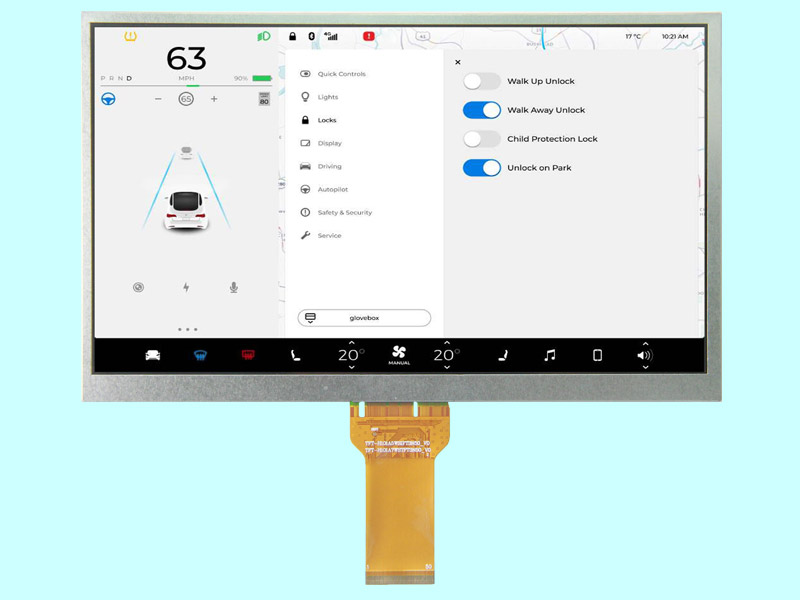

| 10.1寸1024x600 IPS高清TFT彩色显示屏 | RGB接口 TFT-H101A3WSIFT7N50 | TFT显示屏 | 1024x600 |
|
235x143x5.0 | 10.1 | 10.1 | 222.72x125.28 | IPS全视角 | 750cd/m2 | FPC-50 PIN | TTL | 防静电ESD 8KV | -20~70℃ | +3.3 V | EK79001+EK73215 | |
| 10.1寸TFT横屏|1024*600IPS宽视角|RGB接口|厚度5.0高亮度TFT-H101A3WSIFT7N50 | TFT横屏 | 1024x600 |
|
235.0x143.0x5.0 | 10.1 | 10.1 | 222.72x125.28 | 全视角 | 1000cd/m2 | 50PIN | RGB | 可配套CTP | -20~70度 | 3.3V | EK79001+EK73215 | |

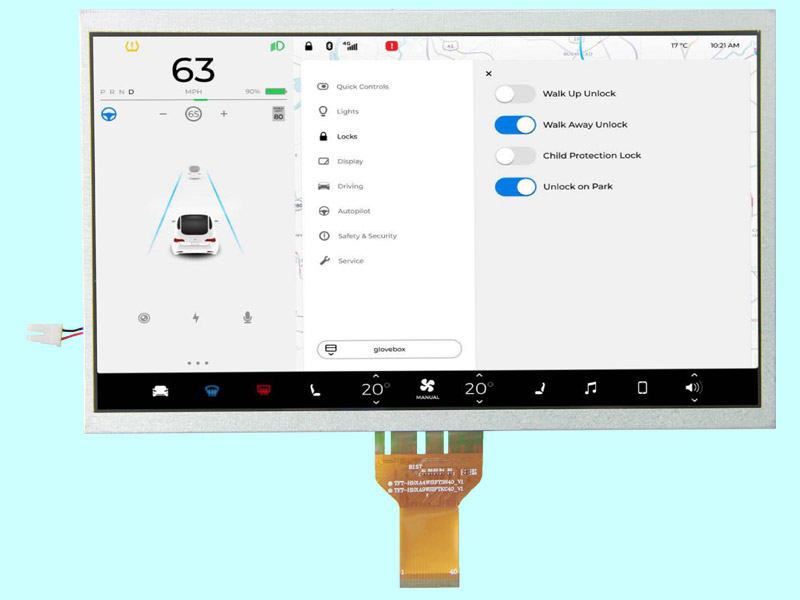

| 10.1英寸1024x600全视角标准TFT液晶显示屏 | LVDS接口 | EK79001+EK73215 TFT-H101A4WSIFT3N40 | TFT显示屏 | 1024x600 |
|
235x143x3.0 | 10.1 | 10.1 | 222.72x125.28 | IPS全视角 | 300cd/m | FPC-40 pin | LVDS | 防静电ESD 8KV | -20~70℃ | +3.3 V | EK79001+EK73215 | |
| 10.1寸TFT横屏|1024*600宽视角IPS|LVDS接口|厚度3.0普通亮度|TFT-H101A4WSIFT3N40 | TFT横屏 | 1024x600 |
|
235.0x143.0x3.0 | 10.1 | 10.1 | 222.72*125.28 | Full view | 300cd/m2 | FPC-40PIN | LVDS | 可配套CTP | -20~70℃ | 3.3v | EK79001+EK73215 | |

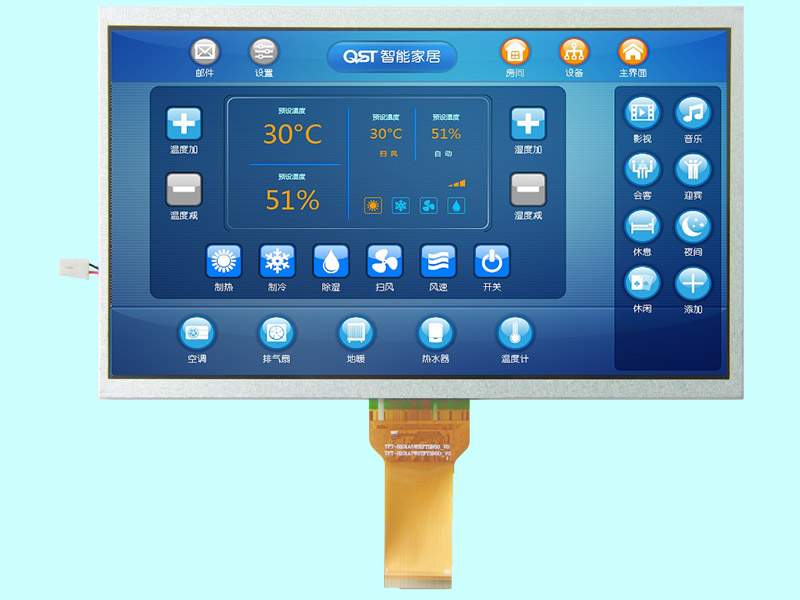

| 1024X600 10.1寸高分辨率全彩TFT LCD/ IPS全视角显示屏 TFT-H101A5WSIFT3N50 | TFT显示屏 | 1024x600 |
|
235x143x3.0 | 10.1 | 10.1 | 222.72x125.28 | IPS全视角 | 300cd/m | FPC-50 pin | TTL | 防静电ESD 8KV | -20~70℃ | +3.3 V | EK79001+EK73215 | |
| 10.1寸TFT横屏|1024*600IPS宽视角|RGB接口|厚度3.0普通亮度|TFT-H101A5WSIFT3N50 | TFT横屏 | 1024x600 |
|
235.0x143.0x3.0 | 10.1 | 10.1 | 222.72x125.28 | 全视角 | 300cd/m2 | 50pin | RGB | 可配套CTP | -20-70℃ | 3.3V | EK79001+EK73215 | |

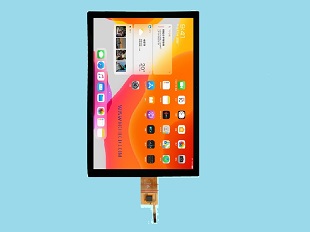

| 10.1寸TFT彩屏 电容触摸/800*1280宽视角IPS/MIPI_4L/10.1寸/TFT-H101W8WXIWZ1C40 | TFT竖屏 | 800x1280 |
|
240.58x159.36x4.45 | 10.1 | 10.1 | 216.58x135.36 | Full view | 180cd/m2 | 40PIN | MIPI | 抗静电ESD 8KV | -20~70℃ | 3.3v | EK79029+GT7291 | |

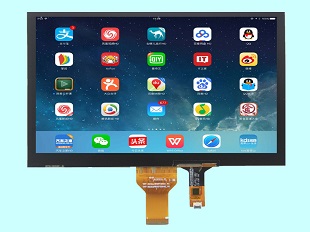

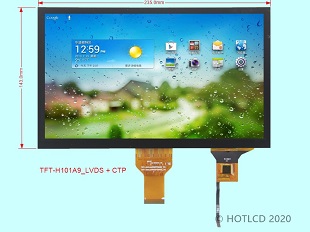

| 10.1寸TFT彩屏 /1024*600分辨率 /全视角IPS工艺 /LVDS接口 /TFT-H101A9WSIFTKC40 | TFT横屏 | 1024x600 |
|
235.00x143.00x6.95 | 10.1 | 10.1 | 222.72x125.28 | 全视角 | 1000cd/m2 | 40PIN | LVDS | 带CTP电容触摸芯片GT9271 | -20~70℃ | 3.3V | EK79001+EK73215 | |

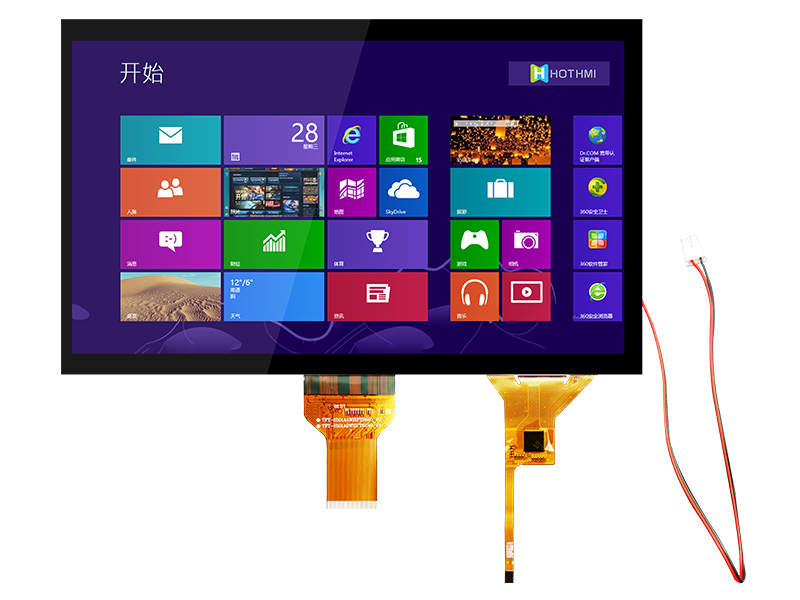

| 10.1寸TFT横屏|带电容触摸|1024x600IPS宽视角|LVDS接口|厚度5.0高亮度背光TFT-H101A9WSIFTKC40 | TFT横屏 | 1024x600 |
|
235.0x143.0x5.0 | 10.1 | 10.1 | 222.72x125.28 | 全视角 | 1000cd/m2 | 40PIN | LVDS | 带电容触摸屏 | -20~70度 | 3.3V | EK79001+EK73215 |
